Apple iPhone 16 Pro Technical Specifications and Features

1. Design and Build:

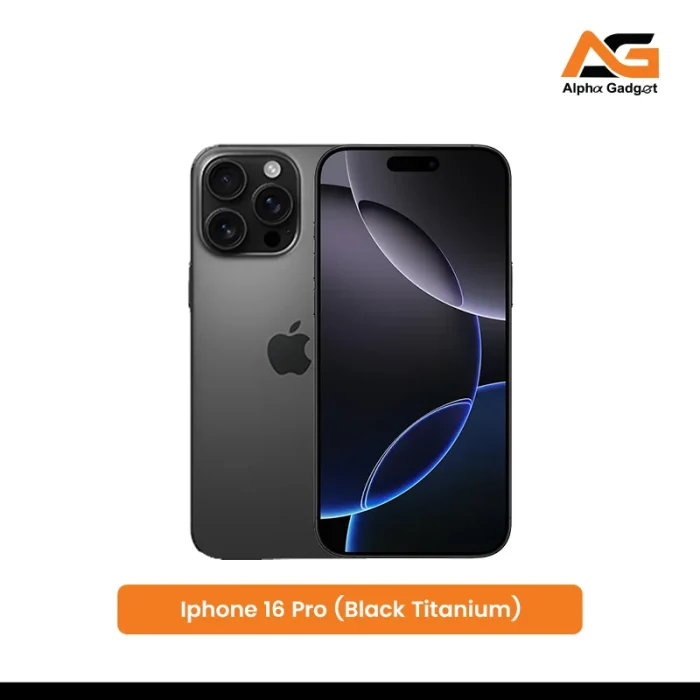

iPhone 16 Pro

• Dimensions: 149.6 x 71.5 x 8.3 mm (5.89 x 2.81 x 0.33 in)
• Weight: 199g (7.02 oz)
• Materials: Corning-made glass front and back with a premium Grade 5 titanium frame
• Water and Dust Resistance: IP68-rated, protected up to 6 meters for 30 minutes
• SIM Options:
  • Nano-SIM and eSIM for International version
  • Dual eSIM with multiple numbers for USA
  • Dual SIM (Nano-SIM, dual standby) for China
• Color Options: Black Titanium, White Titanium, Natural Titanium, Desert Titanium

2. Display:

• Type: 6.3-inch LTPO Super Retina XDR OLED
• Refresh Rate: 120Hz with HDR10 and Dolby Vision support
• Brightness: 1000 nits (typical), 2000 nits (HBM), and measured peak of 1764 nits
• Resolution: 1206 x 2622 pixels, 19.5:9 ratio (~460 ppi)
• Protection: Ceramic Shield glass (2024 generation)
• Special Features: Always-On display, enhanced viewing quality under various lighting

3. Performance:

• Operating System: iOS 18
• Chipset: Apple A18 Pro (3nm)
• CPU: Hexa-core with 2 high-performance cores at 4.05 GHz and 4 efficiency cores at 2.42 GHz
• GPU: Apple 6-core graphics for powerful visuals and gaming
• Memory: 8GB RAM

4. Camera System:

• Triple Rear Cameras:
  • 48 MP Wide Lens: f/1.8 aperture, 24mm, 1/1.28″ sensor size, 1.22µm pixels, dual pixel PDAF, sensor-shift OIS
  • 12 MP Periscope Telephoto: f/2.8, 120mm, 1/3.06″ sensor, 1.12µm pixels, dual pixel PDAF, 3D sensor-shift OIS, 5x optical zoom
  • 48 MP Ultrawide: f/2.2, 13mm, 0.7µm pixels, PDAF
  • TOF 3D LiDAR Scanner: Depth-sensing technology for AR and low-light photography
• Camera Features: Dual-LED dual-tone flash, HDR (photo/panorama), ProRes, 10-bit HDR, Dolby Vision HDR, and 3D spatial video/audio recording
• Video: 4K at 24/25/30/60/100/120fps, 1080p at 25/30/60/120/240fps with stereo sound recording

5. Selfie Camera:

• Resolution: 12 MP, f/1.9 aperture, 23mm wide, 1/3.6″ sensor, PDAF, OIS
• Features: HDR, Dolby Vision HDR, and 3D spatial audio
• Video Capabilities: 4K recording at 24/25/30/60fps, 1080p at 25/30/60/120fps with gyro-EIS

6. Battery and Charging:

• Battery: Li-Ion 3582 mAh, non-removable
• Charging:
  • Wired charging with PD2.0, 50% in 30 minutes (advertised)
  • Wireless: 25W (MagSafe), 15W (Qi2), 15W (China-specific)
  • Reverse wired charging at 4.5W

7. Connectivity of iPhone 16 Pro

• Wi-Fi: Wi-Fi 802.11 a/b/g/n/ac/6e/7, tri-band support, hotspot capable
• Bluetooth: Version 5.3 with A2DP, LE
• Positioning: GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS, NavIC
• NFC: Enabled for transactions and communication
• USB: USB Type-C 3.2 Gen 2 with DisplayPort support
• Ultra Wideband (UWB): Gen2 chip for precise location services

8. Additional Features:

• Face ID: Secure facial recognition for unlocking and app authentication
• Satellite Connectivity: Emergency SOS, Messages, and Find My via satellite for emergencies outside cellular coverage
• Sensors: Accelerometer, gyro, proximity sensor, compass, and barometer
• Apple Pay: Supported with Visa, MasterCard, and AMEX
